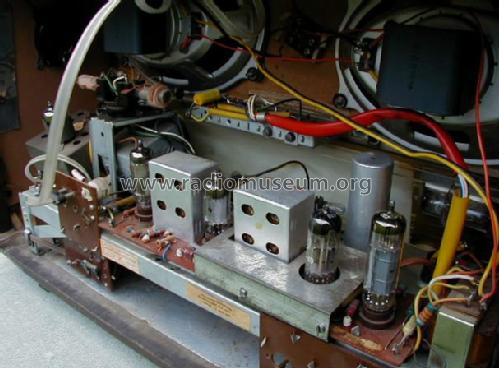

Parsifal U17 Ch= 0/630; Nordmende, (ID = 418488) Radio Parsifal U17 Ch= 0/630; Nordmende, (ID = 1818173) Radio
Parsifal U17 Ch= 0/630; Nordmende, (ID = 418489) Radio Parsifal U17 Ch= 0/630; Nordmende, (ID = 418490) Radio
Parsifal U17 Ch= 0/630; Nordmende, (ID = 418491) Radio Parsifal U17 Ch= 0/630; Nordmende, (ID = 418492) Radio
Use red slider bar for more.
Parsifal U17 Ch= 0/630; Nordmende, (ID = 426962) Radio
Nordmende,: Parsifal U17 Ch= 0/630 [Radio] ID = 426962 933x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Parsifal U17 Ch= 0/630 860.630.00, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Eigenes Gerät

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Parsifal U17 Ch= 0/630 [860.630.00] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 340 x 260 mm / 23.6 x 13.4 x 10.2 inch
Source of data -- Collector info (Sammler)

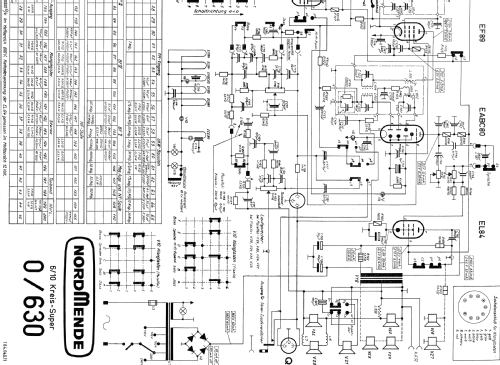

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1714 models, 1605 with images and 1235 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Parsifal U17 Ch= 0/630
Threads: 1 | Posts: 1
Hits: 2368     Replies: 0
nordmende: Parsifal
Claus Marker
14.May.08
  1

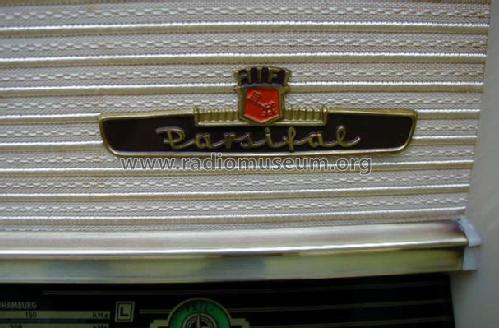

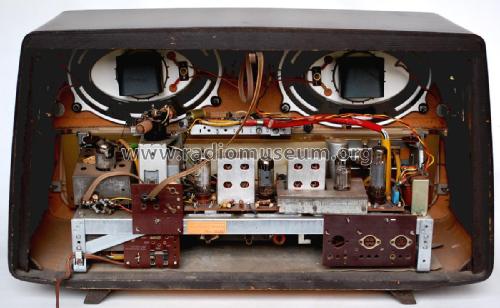

 Im Laufe der Produktion hat Nordmende bei gleichem Modell variiert,bei gleichem Äußeren.Einer meiner Parsifal 59 3D  hat ein Chassis U 17 . Lt . Stempel im Gehäuse  Fertigung im Dez. 1959.Der Hinweis generell aufs  Fertigungsjahr scheint das Firmenlogo zu sein: vor 1960  ist das rote HiFi links im Modellnamen,danach mittig eingeschlossen.
