• Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157945

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 110; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Parsifal C 3/616 C - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 575 x 340 x 255 mm / 22.6 x 13.4 x 10 inch
  • Notes
  • Nordmende Parsifal C 3/616C Stereo High Fidelity;
    US export model,
    FM: 88 - 108 MHz,
    BC: 520 - 1600 kHz*
    SW1:
    SW2:
    Stereo balance-, bass & treble control, tuning indicator tube, DIN phono in, tape DIN terminal, ext. DIN speaker terminals, made in Germany,

    Compare with the German domestic version Nordmende Parsifal D170 3/613.

    * BC dial with CD-marks at 640 and 1240 kHz
    See this forum article Conelrad: Radio meets the Civil Defense

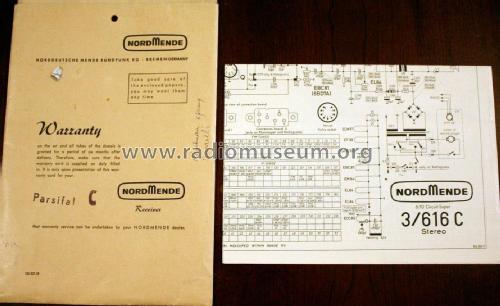

  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
