• Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21735

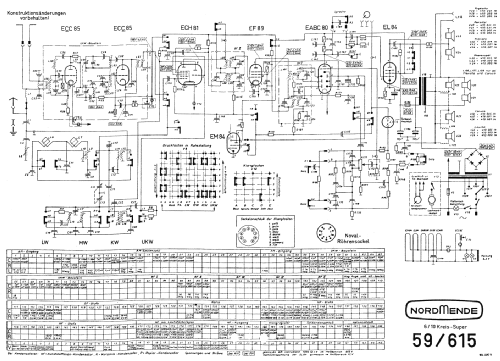

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 5.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Phono-Super 59 Ch= 59/615 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 600 x 353 x 320 mm / 23.6 x 13.9 x 12.6 inch
  • Net weight (2.2 lb = 1 kg)
  • 17.5 kg / 38 lb 8.7 oz (38.546 lb)
  • Price in first year of sale
  • 448.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Phono-Super is part of the collections of the following members.

 Forum

Forum contributions about this model: Nordmende,: Phono-Super 59 Ch= 59/615

Threads: 1 | Posts: 4

In meinem Besitz befindet sich auch ein Phono-Super 59z. Dieses Modell ist noch nicht gelistet. Unter Phono-Super 59 befinden sich auch Bilder von "meinem " Modell .59z Was ist der Unterschied?

Andreas Reuther, 05.Mar.11
