Phono-Super 56 3D Ch= 508
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20271
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker

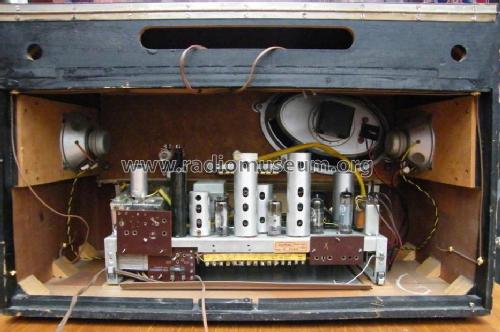

- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Phono-Super 56 3D Ch= 508 - Nordmende, Norddeutsche Mende-
- Shape

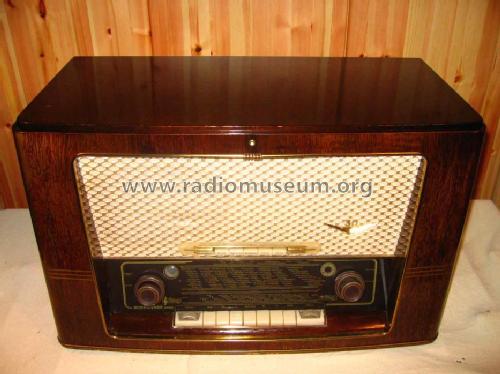

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 640 x 405 x 320 mm / 25.2 x 15.9 x 12.6 inch
- Notes

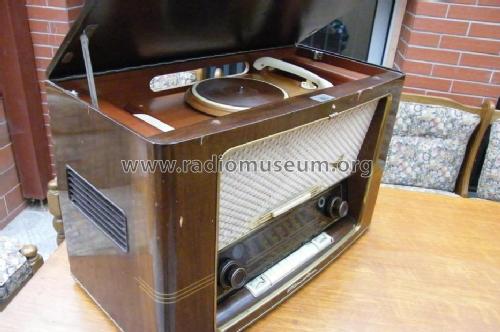

- Drehbare Ferritantenne. Bandbreite schaltbar. Plattenspieler von Perpetuum Ebner, mit 4 Geschwindigkeiten.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 498.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
- Literature/Schematics (1)
- -- Original-techn. papers.
