Rigoletto Ch= 0/614

Rigoletto Ch= 0/614; Nordmende, (ID = 1421283) Radio

Rigoletto Ch= 0/614; Nordmende, (ID = 1421284) Radio

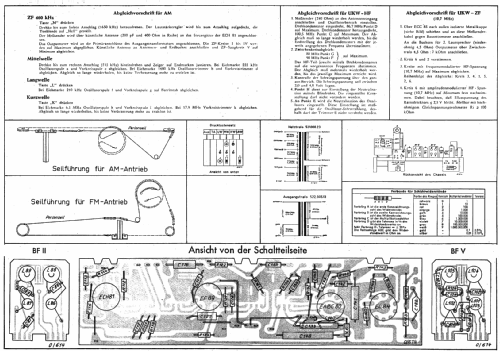

Rigoletto Ch= 0/614; Nordmende, (ID = 1421285) Radio

Rigoletto Ch= 0/614; Nordmende, (ID = 2607604) Radio

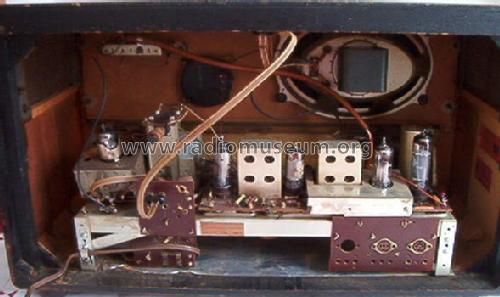

Rigoletto Ch= 0/614; Nordmende, (ID = 52295) Radio Rigoletto Ch= 0/614; Nordmende, (ID = 52299) Radio

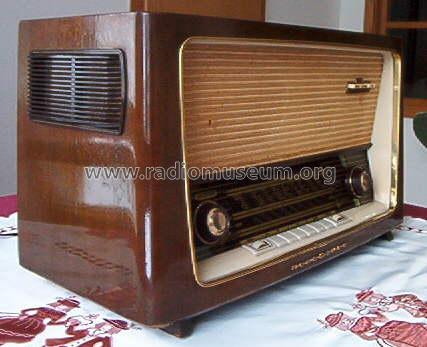

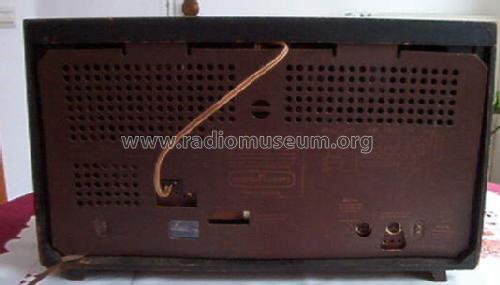

Rigoletto Ch= 0/614; Nordmende, (ID = 52298) Radio Rigoletto Ch= 0/614; Nordmende, (ID = 52296) Radio

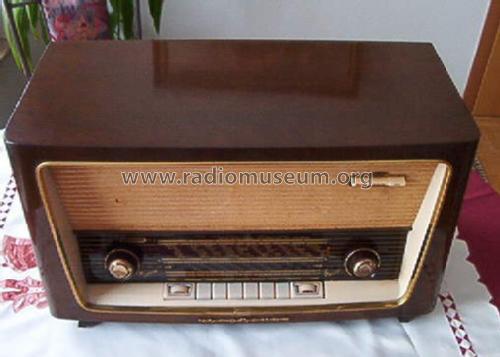

Rigoletto Ch= 0/614; Nordmende, (ID = 52297) Radio
Use red slider bar for more.
Rigoletto Ch= 0/614; Nordmende, (ID = 52295) Radio
Nordmende,: Rigoletto Ch= 0/614 [Radio] ID = 52295 535x322
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rigoletto Ch= 0/614, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Rigoletto Ch= 0/614 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
