• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24248

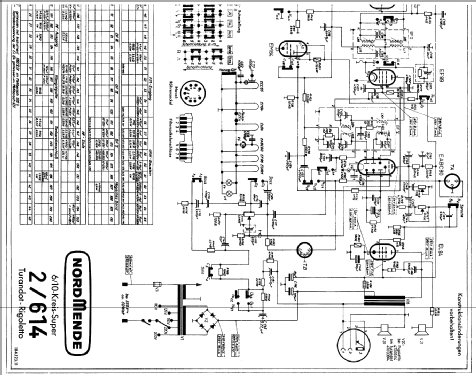

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rigoletto Z15 Ch= 2/614 - Nordmende, Norddeutsche Mende-

• Shape

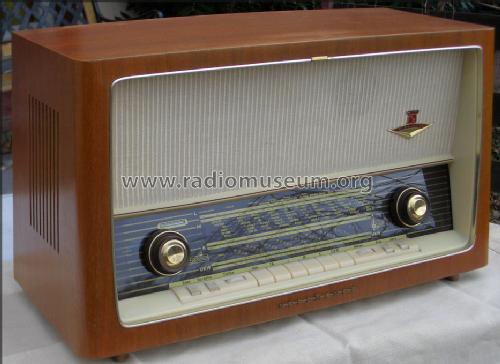

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 555 x 320 x 240 mm / 21.9 x 12.6 x 9.4 inch

• Notes

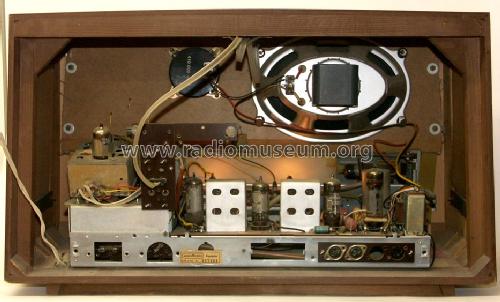

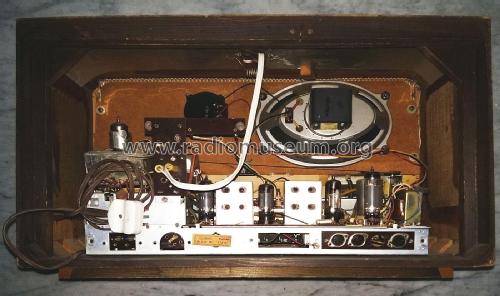

• Externally and internally it is practically identical to the Rigoletto E15 Ch= 1/614 model. It has an elliptical speaker 210x150 mm for low and medium frequencies and an electrostatic speaker 70 mm for high frequencies.

  Four tone registers: Bass, Sprache, Solo and Jazz.
  Continuous treble and bass tone adjustments. Input for turntable and tape recorder. Additional loudspeaker output.
  Internal antennas and external antenna sockets for both AM and FM.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 328.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.
