Sterling Kadett 57 USA Hi-Fidelity
Use red slider bar for more.
Nordmende,: Sterling Kadett 57 USA Hi-Fidelity [Radio] ID = 853156 933x628
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1956/1957 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECC85 ECH81 EF89 EABC80 EL84 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Selen |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.25 inch = 15.9 cm |
| Power out | |
| from Radiomuseum.org | Model: Sterling Kadett 57 USA Hi-Fidelity - Nordmende, Norddeutsche Mende- |

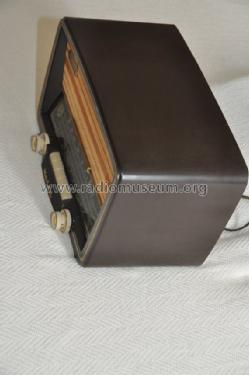

| Material | Bakelite case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 15.5 x 9.75 x 8.15 inch / 394 x 248 x 207 mm |
| Notes | The Nordmende Sterling Kadett is an Export model. The scale shows that it was mainly made for the USA (see the two pictograms on the broadcast band for a special service in case of problems). The short wave band covers the 16, 19, 25, 31, 41 and 49 m band. It is a rather simple receiver with a solid state rectifier. |
| Net weight (2.2 lb = 1 kg) | 8 kg / 17 lb 9.9 oz (17.621 lb) |
Model page created by Robert Anders. See "Data change" for further contributors.
