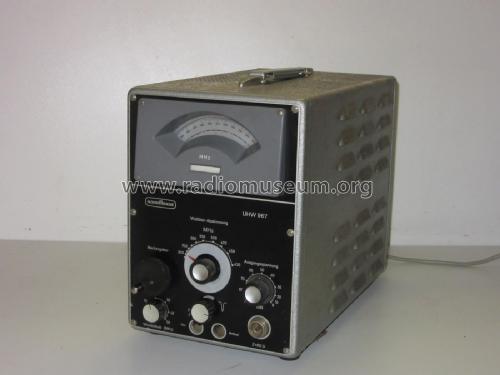

UHF Wobbler UHW 967

UHF Wobbler UHW 967; Nordmende, (ID = 572427) Equipment

UHF Wobbler UHW 967; Nordmende, (ID = 704204) Equipment

UHF Wobbler UHW 967; Nordmende, (ID = 1611278) Equipment
UHF Wobbler UHW 967; Nordmende, (ID = 2022130) Equipment UHF Wobbler UHW 967; Nordmende, (ID = 314259) Equipment
UHF Wobbler UHW 967; Nordmende, (ID = 1112901) Equipment UHF Wobbler UHW 967; Nordmende, (ID = 2046899) Equipment
UHF Wobbler UHW 967; Nordmende, (ID = 2356763) Equipment UHF Wobbler UHW 967; Nordmende, (ID = 2356765) Equipment
UHF Wobbler UHW 967; Nordmende, (ID = 2356766) Equipment UHF Wobbler UHW 967; Nordmende, (ID = 2356768) Equipment
UHF Wobbler UHW 967; Nordmende, (ID = 2359082) Equipment UHF Wobbler UHW 967; Nordmende, (ID = 2359083) Equipment
Use red slider bar for more.
UHF Wobbler UHW 967; Nordmende, (ID = 2022130) Equipment
Nordmende,: UHF Wobbler UHW 967 [Equipment] ID = 2022130 1400x1544
Select picture or schematic to display from thumbnails on the right and click for download.
For model UHF Wobbler UHW 967, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Gerät steht im 'Das Radiomuseum', Cham.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1960 Category: Service- or Lab Equipment
Valves / Tubes 3: EC86 EF80 EM84
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: UHF Wobbler UHW 967 - Nordmende, Norddeutsche Mende-
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 196 x 262 x 360 mm / 7.7 x 10.3 x 14.2 inch
Notes UHF-Wobbler mit Markengeber und einstellbarem Wobbelhub, 430-800 MHz für TV-Band IV/V.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 748.00 DM
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funk-Technik (FT) (18/1960, S. 644 - 646 / Neuvorstellung, Ausführliche Beschreibung, Schema)

Model page created by a member from A. See "Data change" for further contributors.
