- Country
- Italy
- Manufacturer / Brand
- Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99862
Immagine da L'antenna Dicembre 1950

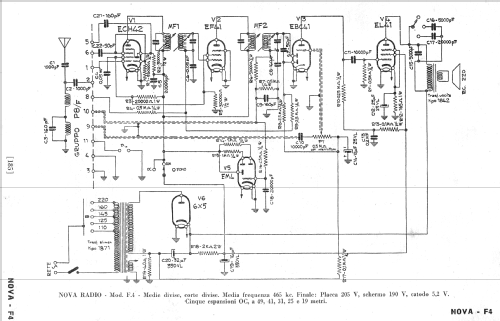

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: F4 - Nova Radio Novaradio, Officina
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 385 x 270 mm / 26.4 x 15.2 x 10.6 inch
- Notes
-
Gamme d'onda: Medie divise; Corte in 5 espansioni: 49, 41, 31, 25 e 19 metri. Utilizza il gruppo AF Nova P8F.
Wave bands: 2 x BC, 5 x SW.
Controllo di tono a 3 posizioni. Ingresso per giradischi.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 57,485.00 ITL
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 185)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
