G2

G2; Nova Radio Novaradio (ID = 252609) Radio
G2; Nova Radio Novaradio (ID = 2274094) Radio G2; Nova Radio Novaradio (ID = 2274093) Radio
G2; Nova Radio Novaradio (ID = 2274095) Radio G2; Nova Radio Novaradio (ID = 2274096) Radio
G2; Nova Radio Novaradio (ID = 2274100) Radio G2; Nova Radio Novaradio (ID = 2274097) Radio
G2; Nova Radio Novaradio (ID = 2274098) Radio G2; Nova Radio Novaradio (ID = 2274099) Radio
G2; Nova Radio Novaradio (ID = 1265814) Radio G2; Nova Radio Novaradio (ID = 1265815) Radio
Use red slider bar for more.
G2; Nova Radio Novaradio (ID = 2274094) Radio
Nova Radio Novaradio: G2 [Radio] ID = 2274094 1400x929
Select picture or schematic to display from thumbnails on the right and click for download.

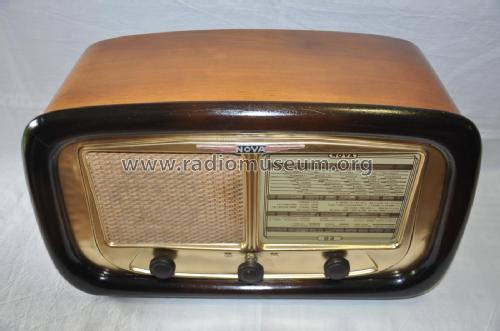

For model G2, Nova Radio (Novaradio); Milano

Country:  Italy
Manufacturer / Brand:  Nova Radio (Novaradio); Milano
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 6X5
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: G2 - Nova Radio Novaradio; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 280 x 200 mm / 18.1 x 11 x 7.9 inch
Notes

Utilizza gruppo AF Nova P8. Serie Voce d'oro. Mobile in legno e radica di noce con mascherina in ottone dorato.
Onde Medie e Corte divise.

Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.




Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 29'934.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 186)
Literature/Schematics (2) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (12a edizione, 1953)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Nova Radio (Novaradio); Milano
Here you find 86 models, 48 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
