• Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118628

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

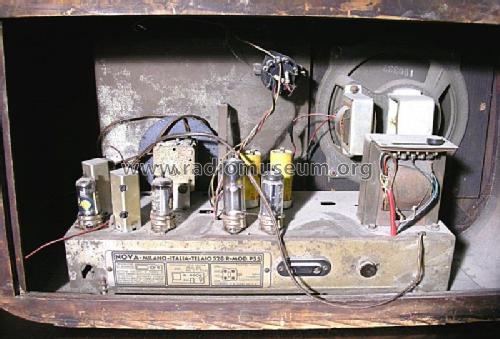

  • Model: P55 Ch= 528-R - Nova Radio Novaradio, Officina
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 590 x 340 x 240 mm / 23.2 x 13.4 x 9.4 inch
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
