B-1394 Ch= L87

B-1394 Ch= L87; Novak also Pontiac; (ID = 320406) Radio B-1394 Ch= L87; Novak also Pontiac; (ID = 320407) Radio
B-1394 Ch= L87; Novak also Pontiac; (ID = 437878) Radio B-1394 Ch= L87; Novak also Pontiac; (ID = 320408) Radio
B-1394 Ch= L87; Novak also Pontiac; (ID = 437874) Radio B-1394 Ch= L87; Novak also Pontiac; (ID = 437875) Radio
B-1394 Ch= L87; Novak also Pontiac; (ID = 437876) Radio B-1394 Ch= L87; Novak also Pontiac; (ID = 1759307) Radio
Use red slider bar for more.
B-1394 Ch= L87; Novak also Pontiac; (ID = 320406) Radio
Novak also Pontiac;: B-1394 Ch= L87 [Radio] ID = 320406 933x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model B-1394 Ch= L87, Novak (also Pontiac); Bruxelles

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH21 UF21 UF21 UBL21 UM4 AZ1
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4.7 W (unknown quality)
from Radiomuseum.org Model: B-1394 Ch= L87 - Novak also Pontiac; Bruxelles
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 630 x 340 x 290 mm / 24.8 x 13.4 x 11.4 inch

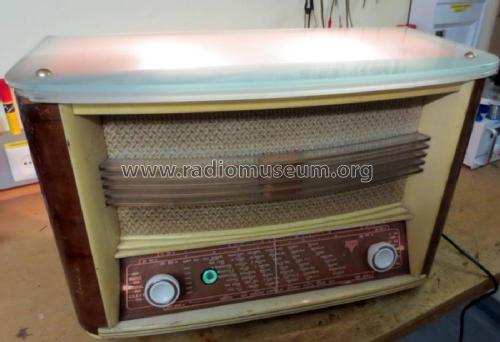

Notes Holzgehäuse mit Glasplatte zur indirekten Beleuchtung.
2 Lautsprecher.

Model page created by Raoul Tholl. See "Data change" for further contributors.



All listed radios etc. from Novak (also Pontiac); Bruxelles
Here you find 280 models, 193 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
