Orchestral 537
Use red slider bar for more.

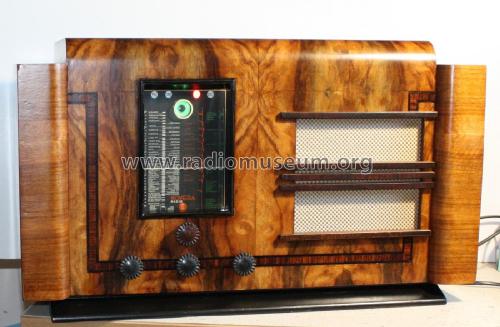

Novera; Marbehan: Orchestral 537 [Radio] ID = 2223591 1400x918
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1940 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6A7 6D6 75 42 6G5 80 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Orchestral 537 - Novera; Marbehan |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Source of data | -- Collector info (Sammler) |
Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
