Novoton 6340
Novoton, West-Berlin
- Country
- Germany
- Manufacturer / Brand
- Novoton, West-Berlin
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180107

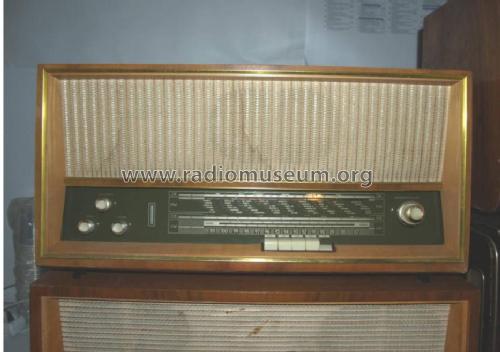

Novoton Berlin-West 6340

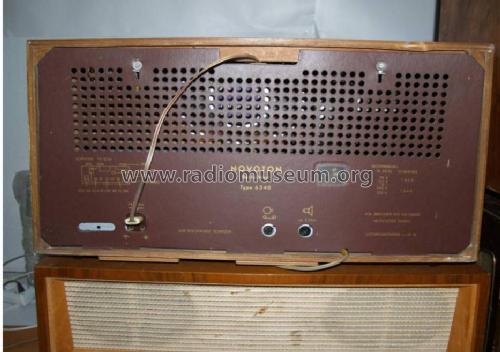

Novoton Berlin-West 6340 Rückwand
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Novoton 6340 - Novoton, West-Berlin
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 620 x 330 x 225 mm / 24.4 x 13 x 8.9 inch
- Notes
-
Exportmodell des Weimar 5040A von Stern-Radio Sonneberg, vertrieben durch die Westberliner Firma Novoton als Typ 6340;
Wellenbereiche:
Langwelle 145 - 350 kHz
Mittelwelle 510 - 1620 kHz
Kurzwelle 16,2 - 50,8 m
UKW 87 - 100 MHz
Lautsprecher: 230 x 160 mm
Leistungsaufnahme: 50 Watt.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Author
- Model page created by Guijiang LIU. See "Data change" for further contributors.
