Aristona H103X
NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Country
- Belgium
- Manufacturer / Brand
- NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 201379

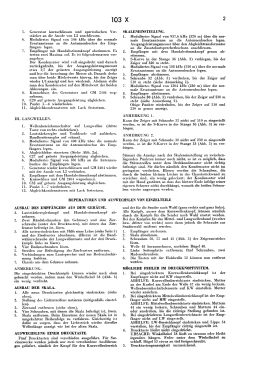

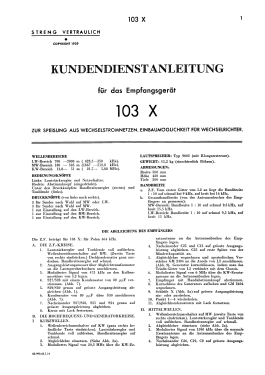

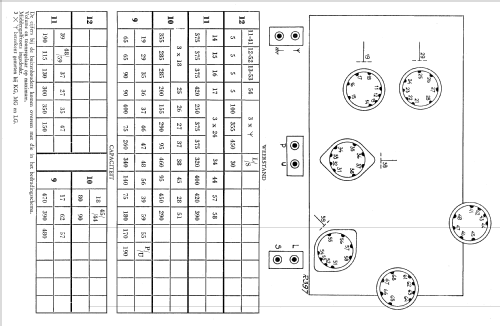

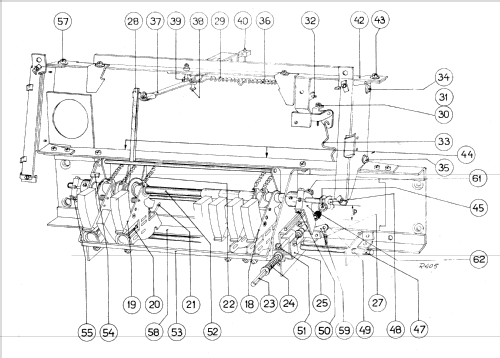

Courtesy by Thijs Bouma (NL).
Courtesy by Thijs Bouma
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 473 kHz
- Tuned circuits
- 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Aristona H103X - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 420 x 230 mm / 22 x 16.5 x 9.1 inch
- Notes
- Loudspeaker model 9602.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
