- Country
- Belgium
- Manufacturer / Brand
- NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 114107

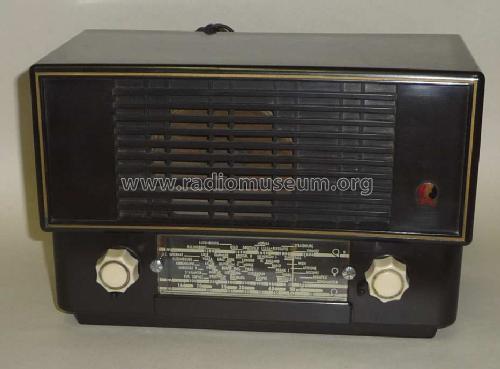

Picture from collection of Rob de Bie (NL).
Picture from collection of Rob de Bie (NL).
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org

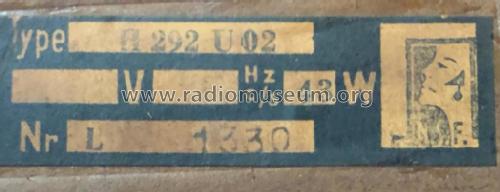

- Model: H292U /02 - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 290 x 195 x 170 mm / 11.4 x 7.7 x 6.7 inch
- Notes
- This model was especially constructed for application in tropical areas (like the former Dutch Indies).
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Price in first year of sale
- 136.00 Hfl
- Mentioned in
- Philips electronenbuizen en onderdelen (Elonco)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by John Koster. See "Data change" for further contributors.
