Umschaltbare Kondensator-Mikrofonkapsel B-M15

NWDR Zentraltechnik, Hamburg

  • Year
  • 1948
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 327085

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit. / 45 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Umschaltbare Kondensator-Mikrofonkapsel B-M15 - NWDR Zentraltechnik, Hamburg
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 60 x 153 x 32 mm / 2.4 x 6 x 1.3 inch
  • Notes

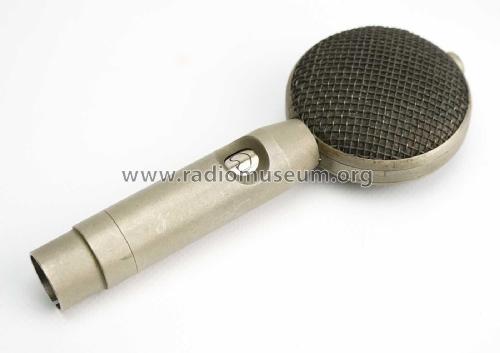

  • Kondensator-Mikrofonkapsel mit Bajonettfuß für Mikrofon-Flaschen wie Neumann CMV3a. Entwickelt und gebaut im Labor des NWDR, um den Nachkriegsbedarf des Rundfunks zu decken.

    Die Konstruktion ist eine Doppelkapsel ähnlich der gerichteten Nieren-Kapsel CM8 bzw. M7 (Neumann Gefell), nur daß beide Membranen kontaktiert sind. Durch einen Drehschalter im Fuß können entweder eine oder beide Membranen elektrisch eingeschaltet werden, so daß das Mikro entweder als Niere oder als Kugel arbeitet. Das entsprechende Symbol dazu ist im Schaufenster am Mikrofonfuß zu sehen.

  • Net weight (2.2 lb = 1 kg)
  • 0.265 kg / 0 lb 9.3 oz (0.584 lb)
  • Author
  • Model page created by Nikolaus Löwe. See "Data change" for further contributors.
