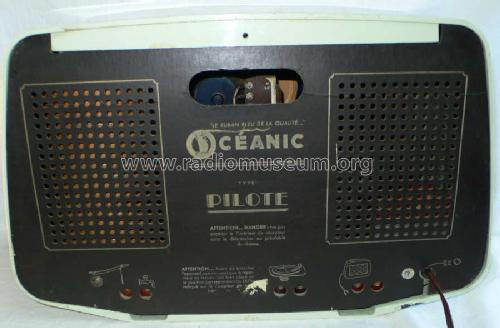

Pilote EM34
Océanic, ITT Océanic; Paris
- Country
- France
- Manufacturer / Brand
- Océanic, ITT Océanic; Paris
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71061
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Pilote [EM34] - Océanic, ITT Océanic; Paris
- Shape

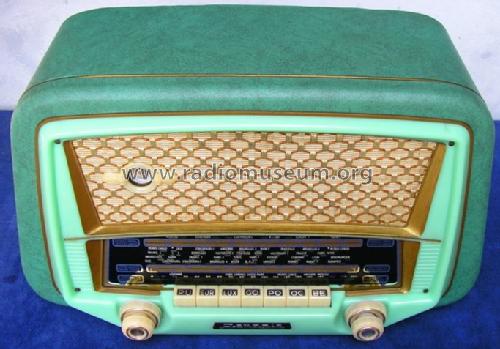

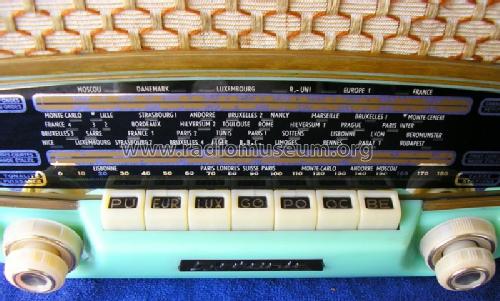

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 450 x 280 x 200 mm / 17.7 x 11 x 7.9 inch
- Notes
-
HP = 12 x 19 cm.
Voir aussi Océanic Pilote avec oeil magique EM81.
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Le grand livre de la TSF (Doctsf Ref 1549)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
