T112
Use red slider bar for more.

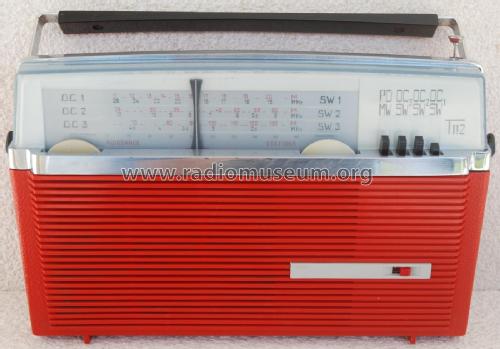

Océanic, ITT Océanic: T112 [Radio] ID = 2629276 1400x978
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964/1965 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: SFT354 or. SFT317 or. SFT108 or. SFT320 SFT319 SFT319 OC71 or. SFT353 OC72 or. SFT123 or. SFT323 OC72 or. SFT123 or. SFT323 SFD107 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Wave bands | Broadcast plus more than 2 Short Wave bands. |
| Details | |
| Power type and voltage | Dry Batteries / 6 x 1.5 or 2 x 4.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | 0.25 W (unknown quality) |
| from Radiomuseum.org | Model: T112 - Océanic, ITT Océanic; Paris |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 300 x 180 x 90 mm / 11.8 x 7.1 x 3.5 inch |
| Notes | 4 gammes d'ondes: PO et 3 x OC. Clavier 4 touches dont commutateur antenne-auto. Cadre ferrite de 210 mm, antenne télescopique. Cadran double. Prise antenne voiture et HP extérieur (ou écouteur). Coffret « antichoc » 4 couleurs: noir, blanc, rouge, sable. Même modèle que T110, T111 et T113 (sauf gammes et semi-conducteurs). |
| Mentioned in | -- Original prospect or advert |
| Literature/Schematics (1) | Le grand livre de la TSF (fiche N° 9971) |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
