T113
Use red slider bar for more.

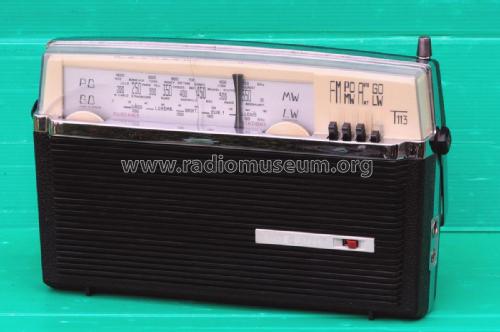

Océanic, ITT Océanic: T113 [Radio] ID = 627720 664x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964/1965 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 6 x 1.5 or 2 x 4.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | 1 W (unknown quality) |
| from Radiomuseum.org | Model: T113 - Océanic, ITT Océanic; Paris |
| Material | Bakelite or Plastics (type unknown) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 300 x 180 x 90 mm / 11.8 x 7.1 x 3.5 inch |
| Notes | 3 gammes d'ondes: PO, GO et FM. Clavier 4 touches dont commutateur antenne-auto. Circuit imprimé, bloc d'accord OREOR. HP: Z = 28 ohms. Cadre ferrite de 210 mm. Cadran double. Prise antenne voiture et HP extérieur (ou écouteur). Coffret « antichoc » 4 coloris: noir, blanc, rouge, sable. Même modèle que T110, T111, et T112 (différents gammes et semi-conducteurs). |
| Net weight (2.2 lb = 1 kg) | 2.5 kg / 5 lb 8.1 oz (5.507 lb) |
| Mentioned in | -- Original prospect or advert |
Model page created by Serge Laffont. See "Data change" for further contributors.
