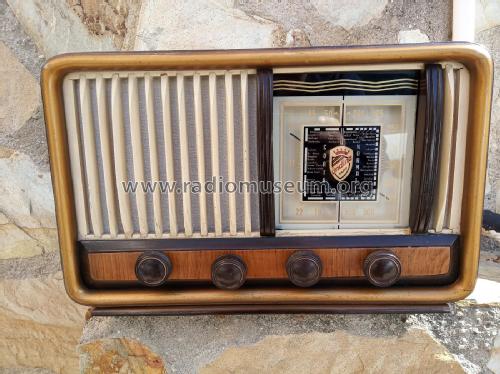

R-125; Ondina Radio (ID = 2372339) Radio
Ondina Radio: R-125 [Radio] ID = 2372339 1400x1048
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-125, Ondina (Radio Eléctrica Solé S.A); Barcelona

Country:  Spain
Manufacturer / Brand:  Ondina (Radio Eléctrica Solé S.A); Barcelona
alternative name

FEARE (Fabricación Española Aparatos Radio Electricidad)
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 AZ41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: R-125 - Ondina Radio Eléctrica Solé S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 270 x 210 mm / 16.5 x 10.6 x 8.3 inch
Notes Modelo de simple diseño muy característico de los fabricantes españoles de principio de los 50.
Collectors' prices

Model page created by Ulises Gutiérrez-Bravo. See "Data change" for further contributors.



All listed radios etc. from Ondina (Radio Eléctrica Solé S.A); Barcelona
Here you find 26 models, 21 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
