• Country
• Spain

• Manufacturer / Brand
• Ondina (Radio Eléctrica Solé S.A); Barcelona

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111663

• • alternative name: FEARE (Fabricación Española Aparatos Radio Electricidad)

• Number of Tubes
• 5

• Valves / Tubes
• ECH41 EAF41 EAF41 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

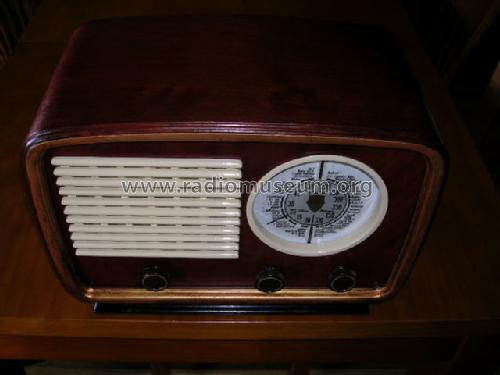

• Model: R-55 - Ondina Radio Eléctrica Solé S.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 420 x 290 x 220 mm / 16.5 x 11.4 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Santiago Lopez-Zapatero. See "Data change" for further contributors.
