130A
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 69049
A magyar rádiózás története.

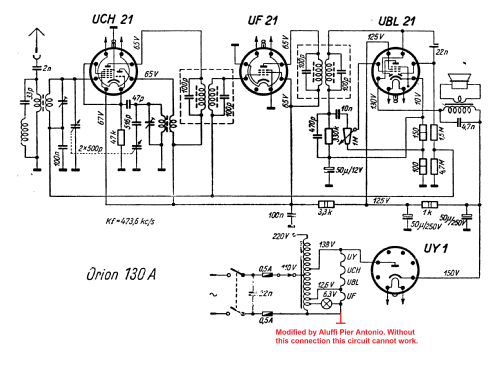

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 130A - Orion; Budapest
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 250 x 170 mm / 11.8 x 9.8 x 6.7 inch
- Notes
-
Autotransformer: Chassis connected to the mains. We do not always state such cases - since often the uploader does not know.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- External source of data
- Volker Jeschkeit
- Mentioned in
- Radio es Televizio Vevö keszülekek, 1956-57 (Eigenes)
- Literature/Schematics (1)
- -- Original-techn. papers. (Rádióvevõkészülékek Kapcsolása - Kádár G. - 1963)
- Other Models
-
Here you find 1029 models, 876 with images and 397 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
