166

166; Orion; Budapest (ID = 18913) Radio
166; Orion; Budapest (ID = 2111765) Radio 166; Orion; Budapest (ID = 471650) Radio
166; Orion; Budapest (ID = 134195) Radio 166; Orion; Budapest (ID = 824279) Radio
166; Orion; Budapest (ID = 2112706) Radio 166; Orion; Budapest (ID = 2112707) Radio
166; Orion; Budapest (ID = 2112708) Radio 166; Orion; Budapest (ID = 2112709) Radio
166; Orion; Budapest (ID = 2112710) Radio 166; Orion; Budapest (ID = 2112711) Radio
Use red slider bar for more.
166; Orion; Budapest (ID = 2111765) Radio
Orion; Budapest: 166 [Radio] ID = 2111765 1120x926
Select picture or schematic to display from thumbnails on the right and click for download.
For model 166, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner

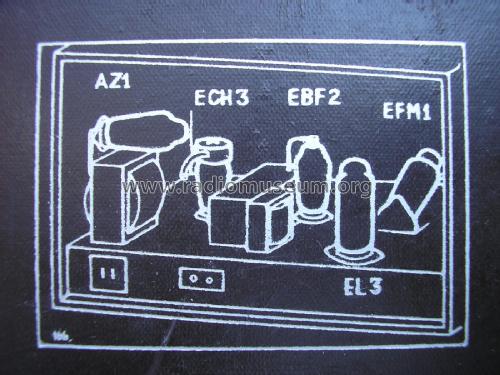

Valves / Tubes 5: ECH3 EBF2 EL3 AZ1 EFM1
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 166 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 361.00 Pengő
Collectors' prices
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (4) Antenna, 1940/34.
