Orion; Budapest: 177 [Radio] ID = 801084 604x453

Select picture or schematic to display from thumbnails on the right and click for download.

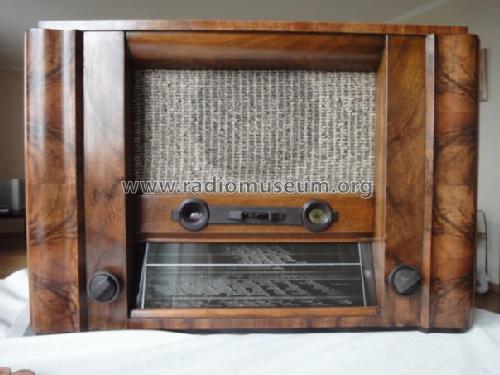

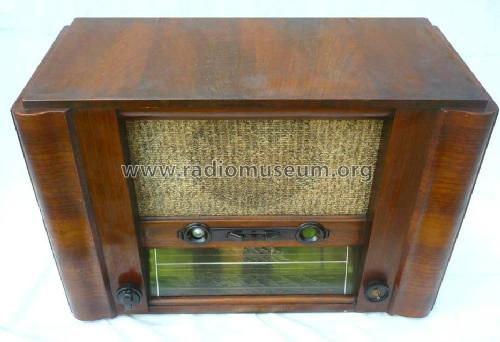

For model 177, Orion; Budapest:
radio from Alexander collections

Country:

Hungary

Manufacturer / Brand:

Orion; Budapest

Year: 1940–1942

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

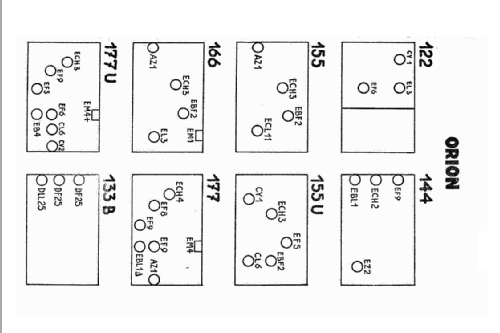

7: EF8 ECH4 EF9 EF9 EM4 EBL1 AZ1

Main principle	Superhet with RF-stage; ZF/IF 473 kHz
Tuned circuits	7 AM circuit(s)
Wave bands	Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage	Alternating Current supply (AC) / 110-250 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org	Model: 177 - Orion; Budapest
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Notes	var.BBr.; 4 x KW
Price in first year of sale	541.00 Pengő
External source of data	E. Erb 3-907007-36-0
Circuit diagram reference	Die «Thali Schemasammlung» führt das Modell.
Mentioned in	Rádiókészülékek Kapcsolásai 1936-56
Literature/Schematics (4)	Antenna, 1940/34.

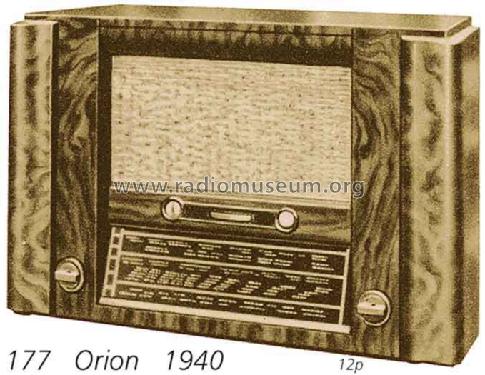

Picture reference	Das Modell ist im «Radiokatalog» (Erb) abgebildet.
