• Year
  • 1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 83231

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org

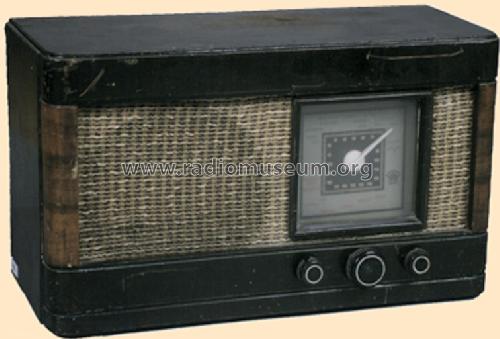

  • Model: 202 - Orion; Budapest
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Spartrafo als Netztrafo.
  • Price in first year of sale
  • 184.00 pengö
  • Author
  • Model page created by Folkert Rothe. See "Data change" for further contributors.
