324

324; Orion; Budapest (ID = 172272) Radio

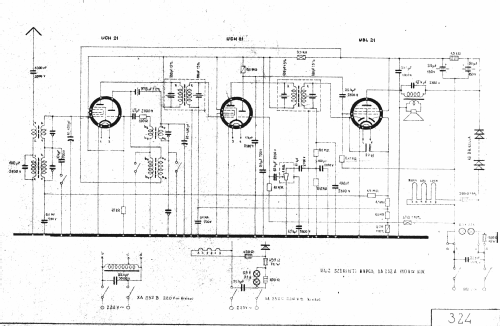

324; Orion; Budapest (ID = 1896747) Radio
324; Orion; Budapest (ID = 176552) Radio 324; Orion; Budapest (ID = 176553) Radio
324; Orion; Budapest (ID = 383795) Radio 324; Orion; Budapest (ID = 135762) Radio
324; Orion; Budapest (ID = 1826606) Radio 324; Orion; Budapest (ID = 1826607) Radio
324; Orion; Budapest (ID = 1826608) Radio 324; Orion; Budapest (ID = 1826609) Radio
Use red slider bar for more.
324; Orion; Budapest (ID = 176552) Radio
Orion; Budapest: 324 [Radio] ID = 176552 542x452
Select picture or schematic to display from thumbnails on the right and click for download.
For model 324, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH21 UCH21 UBL21
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 324 - Orion; Budapest
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Selengleichrichter.
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
