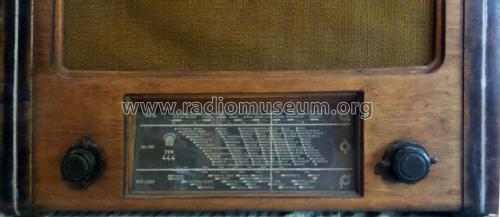

444; Orion; Budapest (ID = 2131979) Radio 444; Orion; Budapest (ID = 2131980) Radio
444; Orion; Budapest (ID = 1186671) Radio 444; Orion; Budapest (ID = 658745) Radio
444; Orion; Budapest (ID = 2131981) Radio 444; Orion; Budapest (ID = 2131983) Radio
444; Orion; Budapest (ID = 134223) Radio
Use red slider bar for more.
444; Orion; Budapest (ID = 586064) Radio
Orion; Budapest: 444 [Radio] ID = 586064 927x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 444, Orion; Budapest:
Thanks for Mr.Kósa Endre Hungary! More info: ..szepradiok.hu/detektoros.html

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1944/1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ21
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 107-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 444 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 360 x 195 mm / 18.5 x 14.2 x 7.7 inch
Price in first year of sale 448.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
