• Year
  • 1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75234

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-220 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) of high quality (4 magnet poles).
  • Material
  • Wooden case
  • from Radiomuseum.org

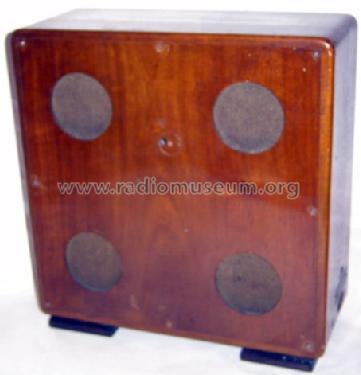

  • Model: 7029 - Orion; Budapest
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 380 x 400 x 160 mm / 15 x 15.7 x 6.3 inch
  • Notes
  • Bedienelemente seitlich
  • Net weight (2.2 lb = 1 kg)
  • 7.1 kg / 15 lb 10.2 oz (15.639 lb)
  • Author
  • Model page created by Jürgen Stichling. See "Data change" for further contributors.
