820A 020

820A; Orion; Budapest (ID = 737203) Radio 820A; Orion; Budapest (ID = 1504033) Radio
820A; Orion; Budapest (ID = 1504034) Radio 820A; Orion; Budapest (ID = 1826708) Radio
820A; Orion; Budapest (ID = 1826710) Radio 820A; Orion; Budapest (ID = 1826711) Radio
820A; Orion; Budapest (ID = 1826712) Radio 820A; Orion; Budapest (ID = 2227716) Radio
820A; Orion; Budapest (ID = 2351364) Radio 820A; Orion; Budapest (ID = 2351365) Radio
Use red slider bar for more.

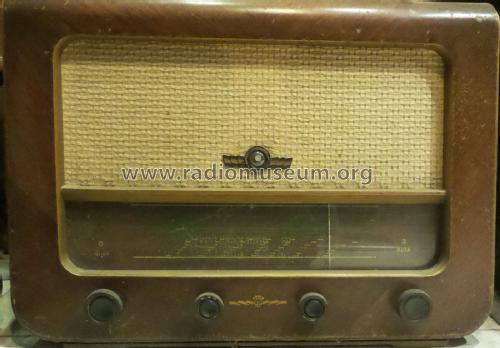

820A; Orion; Budapest (ID = 737203) Radio
Orion; Budapest: 820A [Radio] ID = 737203 600x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model 820A 020, Orion; Budapest:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF22 ECH21 ECH21 ECH21 EM4 EBL21 EBL21 AZ21
Main principle Superheterodyne (common); ZF/IF 473,6/10700 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 820A [020] - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 670 x 490 x 330 mm / 26.4 x 19.3 x 13 inch
Notes Marinen band: 54,4-150 m.
Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Source of data Radio es Televizio Vevö keszülekek, 1956-57
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
