844H

Orion; Budapest

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88232

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

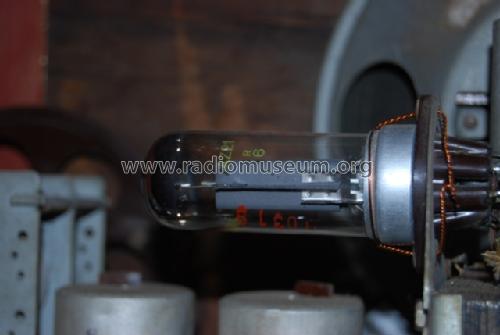

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 473,6 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 844H - Orion; Budapest

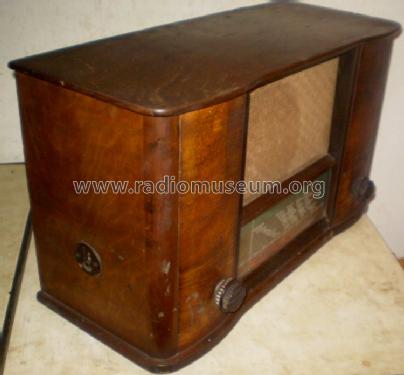

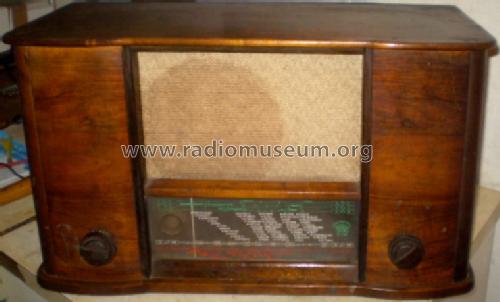

  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 585 x 350 x 280 mm / 23 x 13.8 x 11 inch
  • Notes

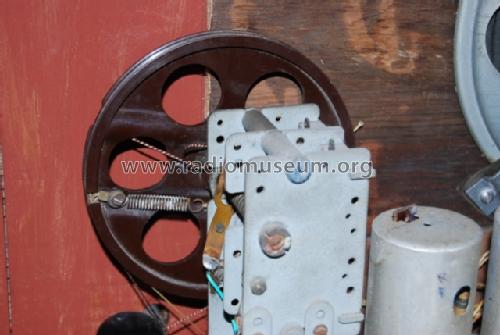

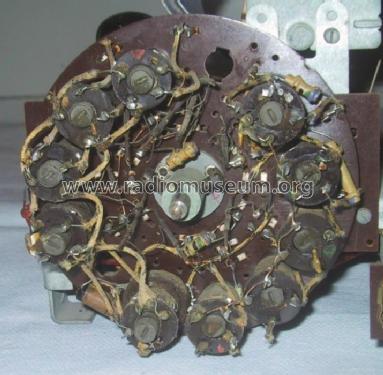

  • Trommeltuner. KW: 16-19 m, 25-31 m, 41-50 m.
  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Price in first year of sale
  • 1,700.00 HUF
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Walter Haring. See "Data change" for further contributors.
