• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17936

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ACH1 AF3 AB2 AF7 ME4 AL5 PV4200

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

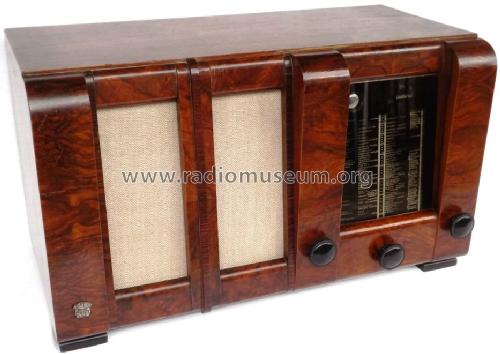

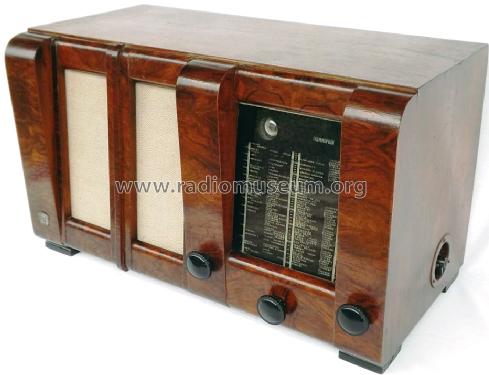

• Model: 88 - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 346 x 294 mm / 23.6 x 13.6 x 11.6 inch

• Notes
• variable Bandbreite.

• Net weight (2.2 lb = 1 kg)
• 19.9 kg / 43 lb 13.3 oz (43.833 lb)

• Price in first year of sale
• 485.00 Pengő

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
