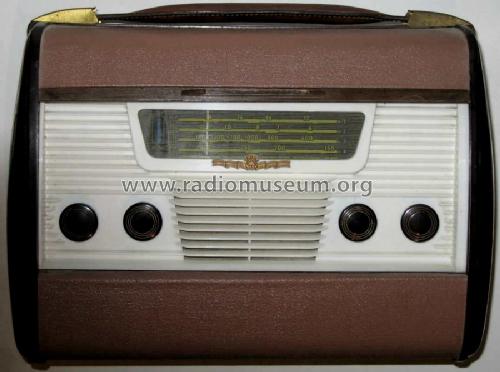

Orion; Budapest: AB 701 [Radio] ID = 530351 900x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model AB 701 030, Orion; Budapest:
Virtuális Rádiómúzeum: ..zalaszam.hu/radio .

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1R5T 1T4T 1T4T 1S5T DM70 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 150; 220; 240 / 3 × 1,5 & 2 × 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: AB 701 [030] - Orion; Budapest
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 255 x 150 mm / 13.4 x 10 x 5.9 inch
Notes SW1: Marine band 2-6 MHz. SW2: 6-12 MHz. SW3: 11,5-18 MHz.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
