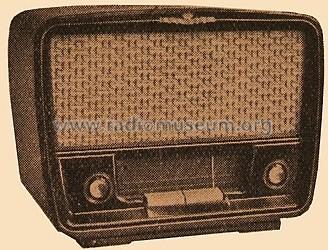

AR201; Orion; Budapest (ID = 258246) Radio AR201; Orion; Budapest (ID = 172256) Radio
AR201; Orion; Budapest (ID = 343901) Radio AR201; Orion; Budapest (ID = 383798) Radio
AR201; Orion; Budapest (ID = 1495213) Radio AR201; Orion; Budapest (ID = 1783866) Radio

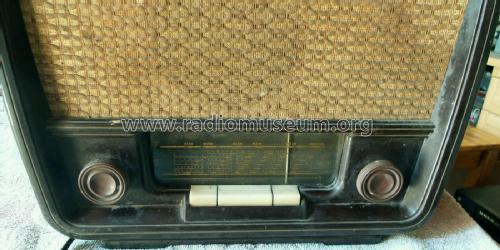

AR201; Orion; Budapest (ID = 1824612) Radio AR201; Orion; Budapest (ID = 1824613) Radio
Use red slider bar for more.
AR201; Orion; Budapest (ID = 258245) Radio
Orion; Budapest: AR201 [Radio] ID = 258245 866x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR201 010, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR201 [010] - Orion; Budapest
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 370 x 280 x 170 mm / 14.6 x 11 x 6.7 inch
Notes SW:6-18 MHz
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 980.00 Forint
Collectors' prices
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
