AR 201 060

Orion; Budapest

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 140864

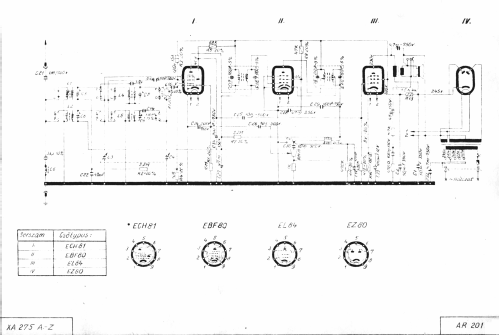

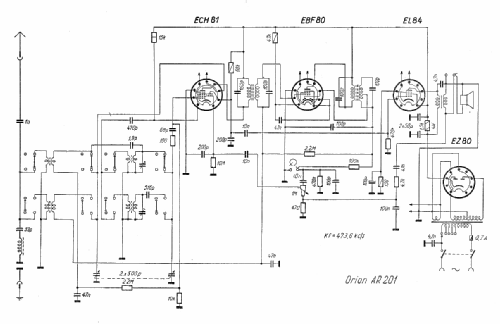

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 473,6 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: AR 201 [060] - Orion; Budapest
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 300 x 250 x 200 mm / 11.8 x 9.8 x 7.9 inch
  • Notes
  • SW:3,7-12 MHz.

    Bakelit front panel and wooden case.

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 980.00 Forint
  • Mentioned in
  • Factory data sheet.
