For model AT302, Orion; Budapest:
Thanks for the photos, Mr. Tamás Kovács!

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1958 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

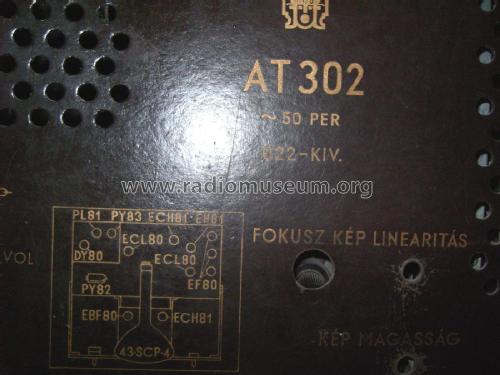

Valves / Tubes 14: EF80 EH81 ECL80 ECH81 PL81 PY83 DY80 PY82 EBF80 43SCP4
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: AT302 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 480 x 460 mm / 19.3 x 18.9 x 18.1 inch
Notes 43cm B/W TV with OIRT VHF Tuner, some Tubes are equipped more than one times. Radioteil MW und KW(6-18MHz)
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Price in first year of sale 5,150.00 HUF
Source of data Radio es Televizio Vevö keszülekek, 1956-57
Mentioned in -- Original prospect or advert
Literature/Schematics (4) Villamossági tömegcikkek árjegyzéke, Bp. 1958

Model page created by Mario Spitzer. See "Data change" for further contributors.
