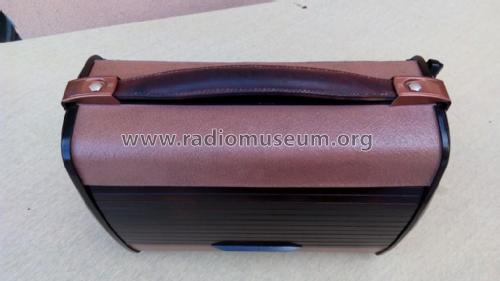

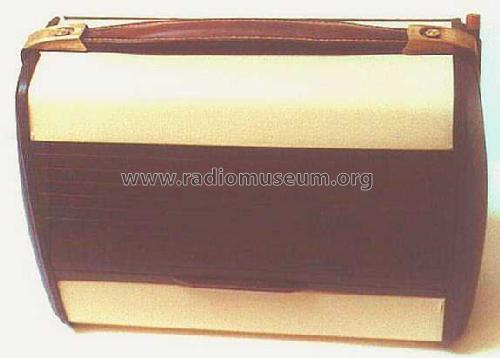

For model BR701 040, Orion; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1R5T 1T4T 1T4T 1S5T DM70 3V4
Main principle Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110-240 / 1.5 + 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: BR701 [040] - Orion; Budapest
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 275 x 150 mm / 13.4 x 10.8 x 5.9 inch

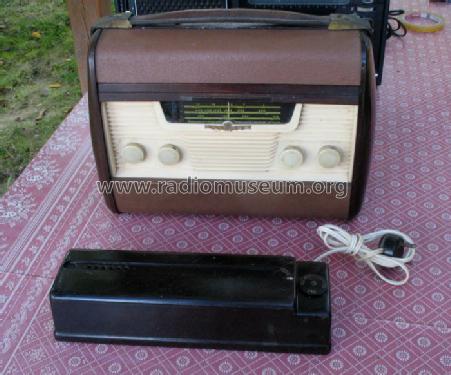

Notes Maße incl. Netzteil-Untersatz (Steckkontakte), Holz-Rolladen, Bakelit-Seitenteile, Thermoplastfront, sonst kaschierte Alu-Formteile. Rollbandmaß-Antenne für KW. 3 KW-Bereiche: 15.7-27.2m (11-19 MHz), 25-35m (8.5-12 MHz), 35-50m (6-8.5MHz), 2 ZF-Stufen
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
