BR 701 010

BR 701; Orion; Budapest (ID = 532486) Radio

BR 701; Orion; Budapest (ID = 532487) Radio

BR 701; Orion; Budapest (ID = 532488) Radio
BR 701; Orion; Budapest (ID = 532291) Radio BR 701; Orion; Budapest (ID = 532293) Radio
BR 701; Orion; Budapest (ID = 532296) Radio BR 701; Orion; Budapest (ID = 532298) Radio
BR 701; Orion; Budapest (ID = 532300) Radio BR 701; Orion; Budapest (ID = 532302) Radio
BR 701; Orion; Budapest (ID = 689778) Radio BR 701; Orion; Budapest (ID = 689779) Radio
BR 701; Orion; Budapest (ID = 689780) Radio BR 701; Orion; Budapest (ID = 1439889) Radio
Use red slider bar for more.

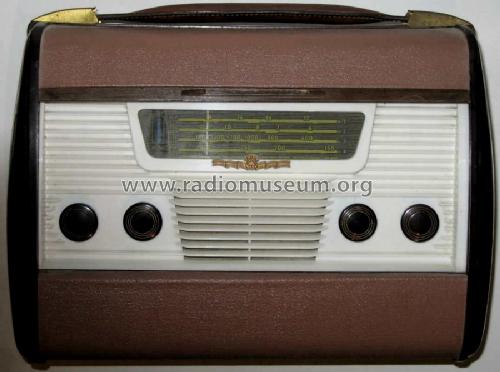

BR 701; Orion; Budapest (ID = 532291) Radio
Orion; Budapest: BR 701 [Radio] ID = 532291 900x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model BR 701 010, Orion; Budapest:
STS kollekcio, more info: ..zalaszam.hu/radio Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1R5T 1T4T 1T4T 1S5T DM70 3V4
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 150; 220; 240 / 3 × 1,5 & 2 × 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: BR 701 [010] - Orion; Budapest
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 255 x 150 mm / 13.4 x 10 x 5.9 inch
Notes SW1: 6-12 MHz. SW2: 11,5-18 MHz.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
