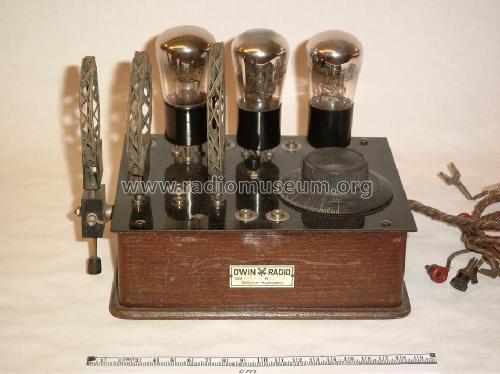

E1001; Owin; Hannover (ID = 35461) Radio
Owin; Hannover: E1001 [Radio] ID = 35461 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model E1001, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE054 RE054 RE154
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4 & 6 & 50 & 100 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E1001 - Owin; Hannover
Material Wooden case, TUBES VISIBLE.
Dimensions (WHD) 185 x 65 x 148 mm / 7.3 x 2.6 x 5.8 inch
Notes Spulen-Koppler links; aperiodische Ankopplung; Widerstandsgekoppelter-NF-Verstärker.
Price in first year of sale 43.00 RM !
Collectors' prices
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (8542)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
