E51W

E51W; Owin; Hannover (ID = 18996) Radio
E51W; Owin; Hannover (ID = 1006081) Radio E51W; Owin; Hannover (ID = 1006082) Radio
E51W; Owin; Hannover (ID = 1006084) Radio E51W; Owin; Hannover (ID = 1006085) Radio
E51W; Owin; Hannover (ID = 1006086) Radio E51W; Owin; Hannover (ID = 1006088) Radio
E51W; Owin; Hannover (ID = 1006090) Radio
Use red slider bar for more.
E51W; Owin; Hannover (ID = 1006081) Radio
Owin; Hannover: E51W [Radio] ID = 1006081 933x540
Select picture or schematic to display from thumbnails on the right and click for download.

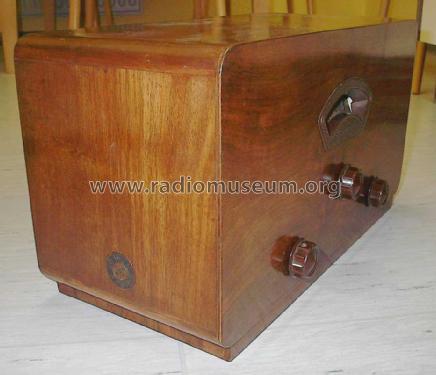

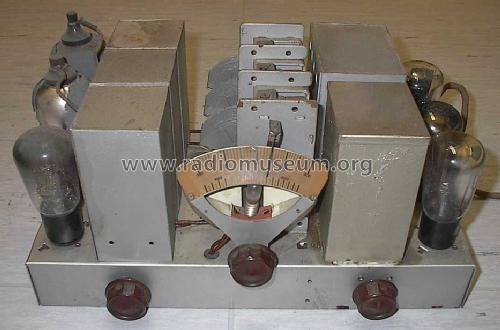

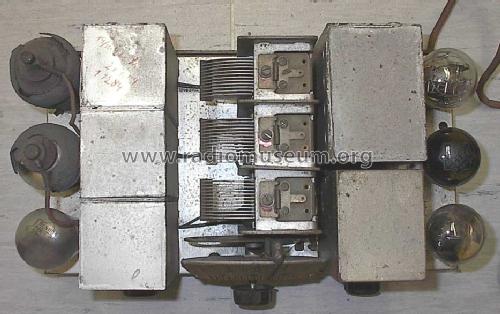

For model E51W, Owin; Hannover:
Ser. Nr. 135134

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1214 RENS1214 REN904 REN904 RE304 RGN1054
Main principle TRF without regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E51W - Owin; Hannover
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen


All listed radios etc. from Owin; Hannover
Here you find 220 models, 176 with images and 78 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
