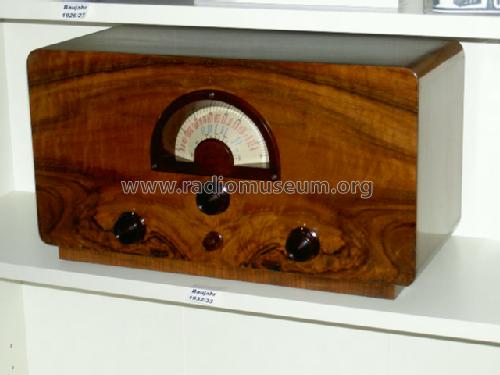

E52W; Owin; Hannover (ID = 624) Radio E52W; Owin; Hannover (ID = 973212) Radio
E52W; Owin; Hannover (ID = 973217) Radio E52W; Owin; Hannover (ID = 2048994) Radio
Use red slider bar for more.
E52W; Owin; Hannover (ID = 624) Radio
Owin; Hannover: E52W [Radio] ID = 624 700x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model E52W, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1214 or H4125D RENS1214 or H4125D REN904 or A4110 REN904 or A4110 RES374 or L427D RGN1054 or G490
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 2 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E52W - Owin; Hannover
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 205 x 165 mm / 17.1 x 8.1 x 6.5 inch
Notes

Zum Preis kommen nochmal RM 80,40 für die Röhren.

Endstufe kann alternativ mit den Trioden RE604 (Telefunken) oder LK460 (Valvo) bestückt werden.

Price in first year of sale 149.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Radio-Zentrale Prohaska 1933/34
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
