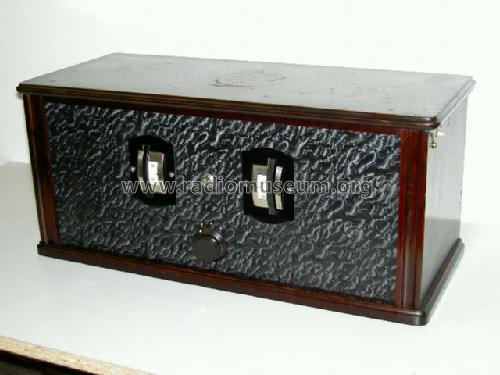

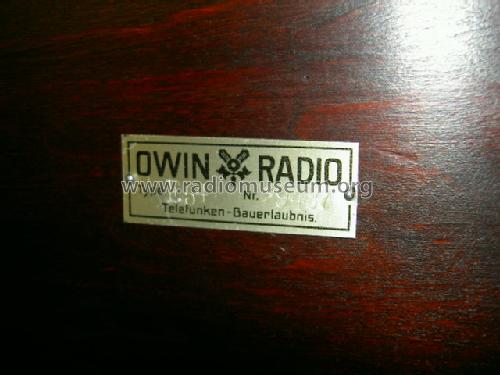

E54; Owin; Hannover (ID = 305980) Radio E54; Owin; Hannover (ID = 305981) Radio
E54; Owin; Hannover (ID = 305984) Radio E54; Owin; Hannover (ID = 2048625) Radio
E54; Owin; Hannover (ID = 2048628) Radio E54; Owin; Hannover (ID = 2048629) Radio
E54; Owin; Hannover (ID = 2048630) Radio
Use red slider bar for more.
E54; Owin; Hannover (ID = 2048626) Radio
Owin; Hannover: E54 [Radio] ID = 2048626 1400x821
Select picture or schematic to display from thumbnails on the right and click for download.
For model E54, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RE084 RE084 RE084 RE134
schematic requested
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E54 - Owin; Hannover
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 458 x 207 x 200 mm / 18 x 8.1 x 7.9 inch
Notes Aperiodischer HF-Verstärker; 2 Trommelskalen.
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Price in first year of sale 156.00 RM +
Source of data Radio Schnorr 1929 / Radiokatalog Band 1, Ernst Erb
