G52W

G52W; Owin; Hannover (ID = 164636) Radio G52W; Owin; Hannover (ID = 1732559) Radio

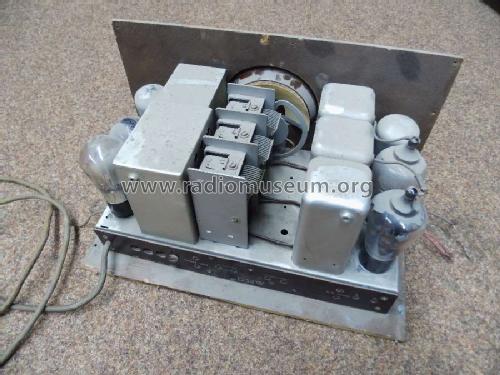

G52W; Owin; Hannover (ID = 1732560) Radio G52W; Owin; Hannover (ID = 1732561) Radio
G52W; Owin; Hannover (ID = 2048995) Radio
Use red slider bar for more.
G52W; Owin; Hannover (ID = 164636) Radio
Owin; Hannover: G52W [Radio] ID = 164636 482x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model G52W, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1214 RENS1214 REN904 REN904 RES374 RGN1054
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 2 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: G52W - Owin; Hannover
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 610 x 999 x 400 mm / 24 x 39.3 x 15.7 inch
Price in first year of sale 615.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen


All listed radios etc. from Owin; Hannover
Here you find 220 models, 176 with images and 78 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
