Kadett L111W (nicht LlIIW oder L3W)

Kadett L111W ; Owin; Hannover (ID = 1779816) Radio

Kadett L111W ; Owin; Hannover (ID = 25701) Radio

Kadett L111W ; Owin; Hannover (ID = 1778845) Radio

Kadett L111W ; Owin; Hannover (ID = 25702) Radio

Kadett L111W ; Owin; Hannover (ID = 5018) Radio
Kadett L111W ; Owin; Hannover (ID = 110220) Radio Kadett L111W ; Owin; Hannover (ID = 1087931) Radio
Kadett L111W ; Owin; Hannover (ID = 60997) Radio Kadett L111W ; Owin; Hannover (ID = 1778844) Radio
Use red slider bar for more.
Kadett L111W ; Owin; Hannover (ID = 110220) Radio
Owin; Hannover: Kadett L111W [Radio] ID = 110220 539x427
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kadett L111W (nicht LlIIW oder L3W), Owin; Hannover:
Gerät nicht mehr in meinem Besitz.

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL1 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Kadett L111W - Owin; Hannover
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 340 x 235 mm / 17.1 x 13.4 x 9.3 inch
Price in first year of sale 158.00 RM
Collectors' prices
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

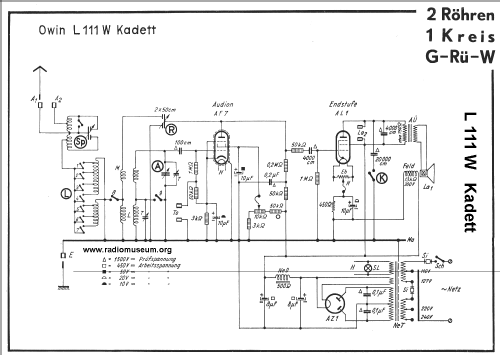

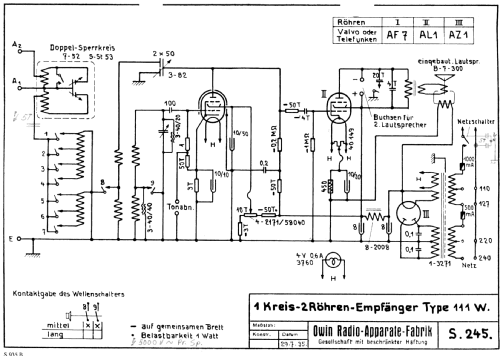

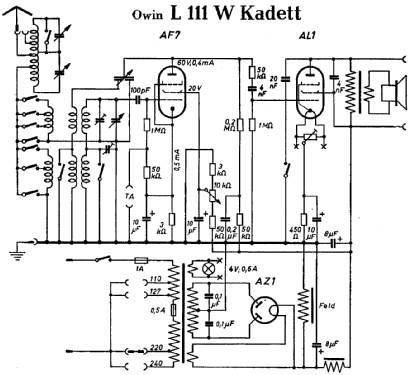

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Owin; Hannover
Here you find 216 models, 164 with images and 78 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
