• Country
• Germany

• Manufacturer / Brand
• Owin; Hannover

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7477

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• RENS1234 AK1 RENS1234 AB1 RENS1294 RES964 RGN1064

• Main principle
• Superhet with RF-stage; ZF/IF 486 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Meisterstück L96W - Owin; Hannover

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 430 x 480 x 325 mm / 16.9 x 18.9 x 12.8 inch

• Notes
• Feldstärke-Anzeige.

• Price in first year of sale
• 379.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

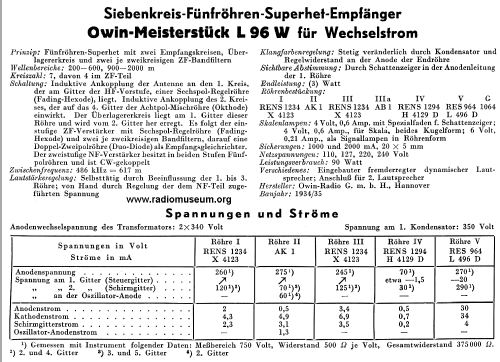

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
