Oekonom 35 L92B
Owin; Hannover
- Country
- Germany
- Manufacturer / Brand
- Owin; Hannover
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7479

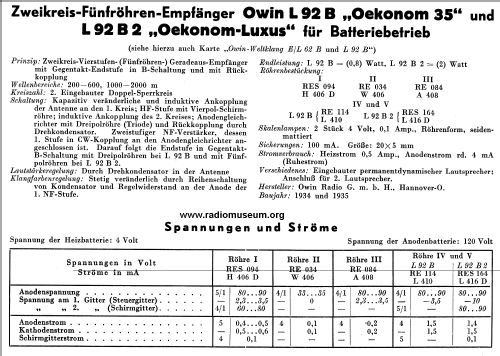

Ernst Rose Bremen Katalog "Radio 1935"
Ernst Rose Bremen Katalog "Radio 1935"

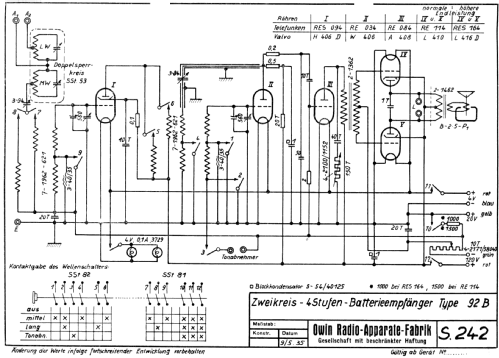

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 20 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

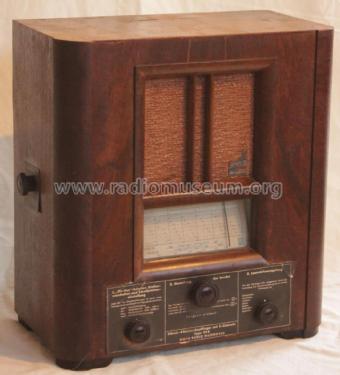

- Model: Oekonom 35 L92B - Owin; Hannover
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 395 x 440 x 220 mm / 15.6 x 17.3 x 8.7 inch
- Price in first year of sale
- 198.00 RM
- Source of data
- Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
