R 44 W

R 44 W; Owin; Hannover (ID = 480562) Radio R 44 W; Owin; Hannover (ID = 479639) Radio
R 44 W; Owin; Hannover (ID = 479640) Radio R 44 W; Owin; Hannover (ID = 479638) Radio
R 44 W; Owin; Hannover (ID = 480484) Radio R 44 W; Owin; Hannover (ID = 696294) Radio
R 44 W; Owin; Hannover (ID = 696295) Radio R 44 W; Owin; Hannover (ID = 696296) Radio
Use red slider bar for more.

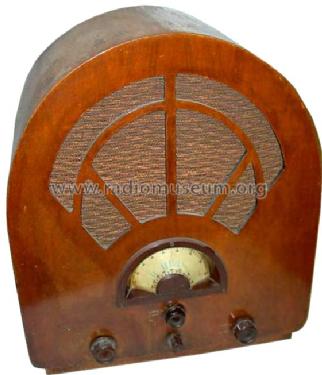

R 44 W; Owin; Hannover (ID = 480562) Radio
Owin; Hannover: R 44 W [Radio] ID = 480562 562x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model R 44 W, Owin; Hannover:
ebay, Hewi45; (nachbearbeitet)

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1214 REN904 REN904 RE304 or RES374 RGN1054
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: R 44 W - Owin; Hannover
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Source of data -- Collector info (Sammler)

Model page created by Martin Steyer. See "Data change" for further contributors.
