• Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50019

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 30 - Pacific Radio Corp.; Chicago,
  • Notes
  • Ballast tube L49C; tuning eye.
  • External source of data
  • Ernst Erb

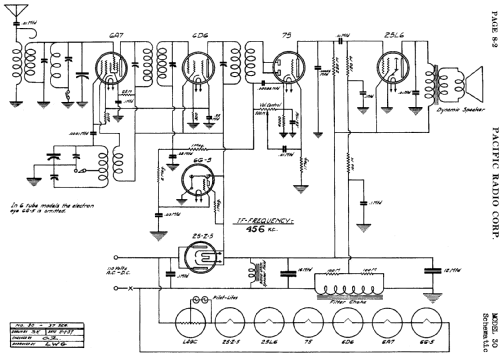

  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
