- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Radio Corp.; Chicago, IL
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50055

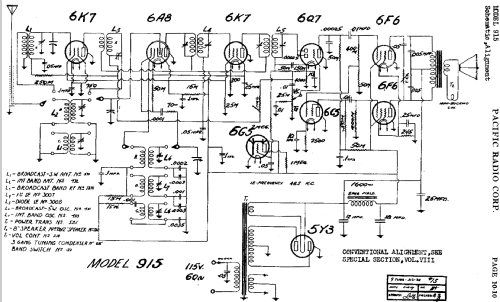

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 915 - Pacific Radio Corp.; Chicago,
- Notes
- push-pull af output stage; tuning eye.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Other Models
-
Here you find 127 models, 82 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Pacific Radio Corp.; Chicago, IL
