• Country
• United States of America (USA)

• Manufacturer / Brand
• Pacific Radio Corp.; Chicago, IL

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250434

• Number of Tubes
• 12

• Valves / Tubes
• 6K7 6K7 6H6 6H6 6F6 6F6 5Y3 5Y3 6C5 6C5 6A8 6G5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: P110W1 - Pacific Radio Corp.; Chicago,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 23 x 39.25 x 11.5 inch / 584 x 997 x 292 mm

• Notes

• With Tuning Eye. Same as Pacific model 110W1 but with Push Button Automatic Tuning.

• Price in first year of sale
• 106.45 $

• Literature/Schematics (3)

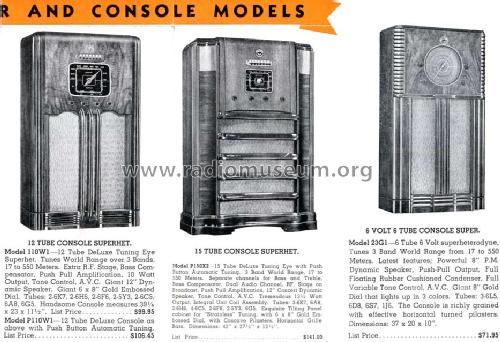

• The Pacific Folder for 1938.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 82 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
